Technical Specifications:
-
Max. bobbin diameter:
450 mm -
Max. paper unwinding length:
3,500 m -
Max. bobbin / tipping paper width:
100 mm -
Max. winding speed:
600 m/min -
Acceleration:
0–600 m/min in less than 3 seconds -
Basis weight:
35-45 g/m² -
Number of cutting blades:
1 (optional) -
Zero-Meter System:
Available as an option
- Max. bobbin diameter:
- 450 mm
- Max. paper unwinding length:
- 3,500 m
- Max. bobbin / tipping paper width:
- 100 mm
- Max. winding speed:
- 600 m/min
- Acceleration:
- 0-600 m/min in less than 3 seconds
- Basis weight:
- 35-45 g/m²
- Number of cutting blades:
- 1 (optional)
- Zero-Meter System:
- Available as an option
- Based on the patented MLT Vario-Polygon system
-
Polygon speed:
66,000 RPM -
Holes per second:
228,000 -
Hole density per centimetre:
5–30 -
Typical porosity:
50–3,000 Coresta Units
- Based on the patented MLT Vario-Polygon system
- Polygon speed:
- 66,000 RPM
- Holes per second:
- 228,000
- Hole density per centimetre:
- 5–30
- Typical porosity:
- 50–3,000 Coresta Units
-
Number of perforation heads:
4–8 - All heads can be positioned across the entire web width
- Each focusing lens can be adjusted with a resolution of 0.01 mm
- Each head features an individual shutter
- Number of perforation heads:
- 4-8
- All heads can be positioned across the entire web width
- Each focusing lens can be adjusted with a resolution of 0.01 mm
- Each head features an individual shutter
- CO₂ laser source with a wavelength of 10.6 µm
-
Typical laser power:
200–1,000 W
- CO₂ laser source with a wavelength of 10.6 µm
- Typical laser power:
- 200–1,000 W
- Web direction
- Crossweb direction
- Free form applications
- Laser Cutting
- Laser Scoring
- Laser Perforation
- Laser Marking
CigLine MLP10 Is Suitable For:
- Laser perforation of cigarette filter paper
- Small to medium production volumes of up to 50 tonnes per year
- Offline production environments
- Single- and double-bobbin applications
- Precise micro-perforation with flexible hole configurations
For production volumes above 50 tonnes per year, the CigLine MLP50 is the ideal solution.
Compact, Flexible & Easy to Operate

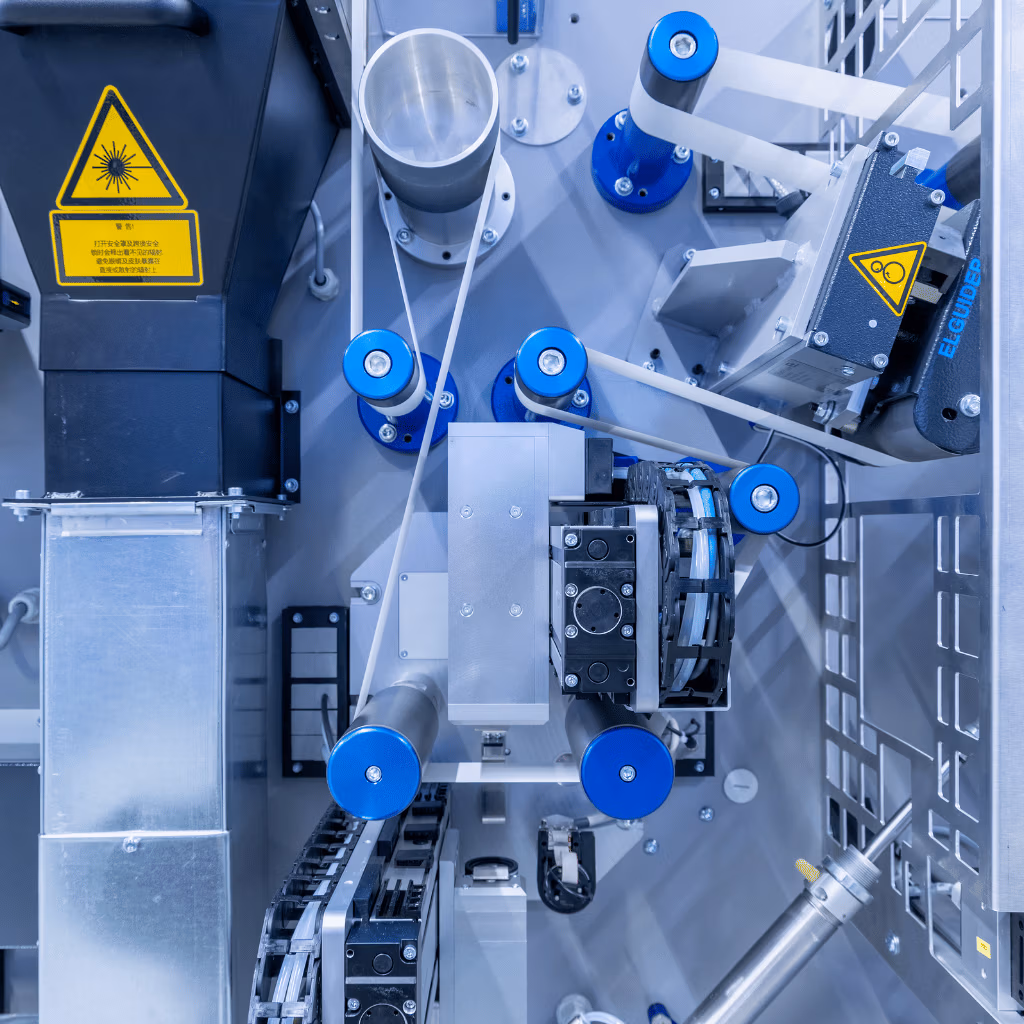

The CigLine MLP10 has been specifically developed for manufacturers looking for a compact, user-friendly solution for laser perforation. Its well-designed offline concept makes the system easy to operate and enables flexible integration into existing production processes.
The patented MLT Vario-Polygon system enables high production speeds while maintaining precise and consistent perforation quality. With up to 8 perforation heads, the system offers the flexibility needed to adapt to a wide range of production requirements.
Typical Applications of the CigLine MLP10
